Win32_Directory Scripting

The `Show-Tree` function is also in the PSScriptTools module.

                June 13, 2024

            Win32_Directory Scripting

            In the [last article](https://buttondown.email/behind-the-powershell-pipeline/archive/powershell-scripting-with-cim_datafile/), I introduced you to the `CIM_DataFile` CIM class. I demonstrated how you might use it as an alternative to the file system. You can use a CIM session for remoting and get additional properties.

#create CIMSession to a remote computer

[CimSession]$cs = 'thinkx1-jh'

#query properties

$Properties = "Name","FileSize","LastModified","FileType"

$query= "Select $($Properties -join ',') from CIM_DataFile where Name = 'c:\\scripts\\db.png'"

#update properties for Select-Object

$Properties+= @{Name="ComputerName";Expression={$cs.ComputerName.ToUpper()}}

$cs.QueryInstances("Root/Cimv2","WQL",$query) | Select-Object -Property $Properties

Personally, I find the property names a bit more meaningful.

Name         : c:\scripts\db.png

FileSize     : 13664

LastModified : 7/16/2013 5:42:07 PM

FileType     : PNG Image

ComputerName : THINKX1-JH

As I showed last time, you can get all files from a single directory.

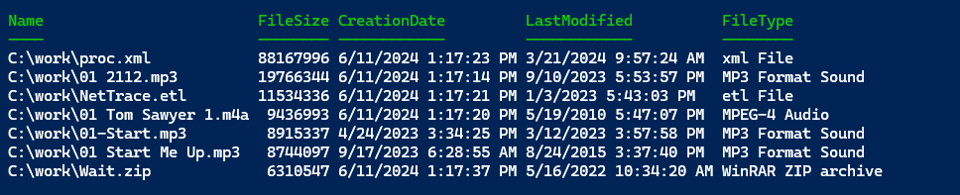

$cs.QueryInstances("Root/Cimv2","WQL","Select * from CIM_DataFile where Path = '\\work\\' AND Drive = 'C:' AND FileSize>=$(5MB)") | Select-Object Name,FileSize,CreationDate,LastModified,FileType | Sort-Object FileSize -descending | Format-Table

figure 1

It is just as easy to get all files from a single location.

[object[]]$a = $cs.QueryInstances("Root/Cimv2","WQL","Select * from CIM_DataFile where Path = '\\scripts\\' AND Drive = 'C:'")

This took 5.2 seconds top get 4166 files remotely. Because of the way the `QueryInstance` method works, I'm specifically casting `$a` as an array . This make it easier to work with the output.

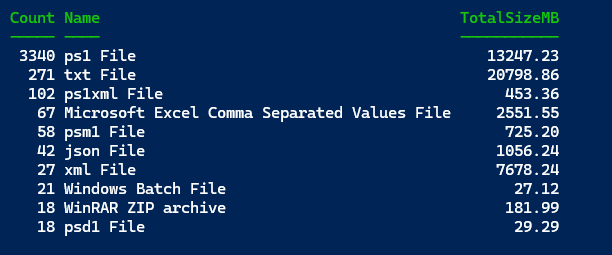

$a | Group Filetype | Sort-Object count -Descending | Select-Object -first 10 -Property Count,Name,

@{Name='TotalSizeMB';Expression={($_.Group | Measure-Object -Property FileSize -Sum).Sum / 1KB}}

figure 2

Where this gets trickier is when you want to recurse through a folder. I want to show you some options for that situation today.

Get a premium subscription for full article and archive access

In the last article, I introduced you to the CIM_DataFile CIM class. I demonstrated how you might use it as an alternative to the file system. You can use a CIM session for remoting and get additional properties.
#create CIMSession to a remote computer
[CimSession]$cs = 'thinkx1-jh'
#query properties
$Properties = "Name","FileSize","LastModified","FileType"
$query= "Select $($Properties -join ',') from CIM_DataFile where Name = 'c:\\scripts\\db.png'"
#update properties for Select-Object
$Properties+= @{Name="ComputerName";Expression={$cs.ComputerName.ToUpper()}}
$cs.QueryInstances("Root/Cimv2","WQL",$query) | Select-Object -Property $Properties

Personally, I find the property names a bit more meaningful.
Name         : c:\scripts\db.png
FileSize     : 13664
LastModified : 7/16/2013 5:42:07 PM
FileType     : PNG Image
ComputerName : THINKX1-JH

As I showed last time, you can get all files from a single directory.
$cs.QueryInstances("Root/Cimv2","WQL","Select * from CIM_DataFile where Path = '\\work\\' AND Drive = 'C:' AND FileSize>=$(5MB)") | Select-Object Name,FileSize,CreationDate,LastModified,FileType | Sort-Object FileSize -descending | Format-Table

figure 1
It is just as easy to get all files from a single location.
[object[]]$a = $cs.QueryInstances("Root/Cimv2","WQL","Select * from CIM_DataFile where Path = '\\scripts\\' AND Drive = 'C:'")

This took 5.2 seconds top get 4166 files remotely. Because of the way the QueryInstance method works, I'm specifically casting $a as an array . This make it easier to work with the output.
$a | Group Filetype | Sort-Object count -Descending | Select-Object -first 10 -Property Count,Name,
@{Name='TotalSizeMB';Expression={($_.Group | Measure-Object -Property FileSize -Sum).Sum / 1KB}}

figure 2
Where this gets trickier is when you want to recurse through a folder. I want to show you some options for that situation today.
Win32_Directory
We will be using the Win32_Directory class.
Get-CimMember Win32_Directory

I'm using the Get-CimMember function from the PSScriptTools module.
figure 3
You can filter on Name property. Don't forget to escape the backslash.
PS C:\> Get-CimInstance win32_directory -Filter "Name='c:\\temp'" | Select *

Status                : OK
Compressed            : False
Encrypted             : False
Name                  : c:\temp
Readable              : True
Writeable             : True
Caption               : c:\temp
Description           : c:\temp
InstallDate           : 2/13/2023 5:00:56 PM
AccessMask            : 18809343
Archive               : False
CompressionMethod     :
CreationClassName     : CIM_LogicalFile
CreationDate          : 2/13/2023 5:00:56 PM
CSCreationClassName   : Win32_ComputerSystem
CSName                : PROSPERO
Drive                 : c:
EightDotThreeFileName : c:\temp
EncryptionMethod      :
Extension             :
FileName              : temp
FileSize              :
FileType              : File Folder
FSCreationClassName   : Win32_FileSystem
FSName                : NTFS
Hidden                : False
InUseCount            :
LastAccessed          : 6/11/2024 9:32:01 AM
LastModified          : 6/3/2024 12:09:59 PM
Path                  : \
System                : False
PSComputerName        :
CimClass              : root/cimv2:Win32_Directory
CimInstanceProperties : {Caption, Description, InstallDate, Name…}
CimSystemProperties   : Microsoft.Management.Infrastructure.CimSystemProperties

And don't include a trailing slash on the path. That will break the query.
PS C:\> Get-CimInstance win32_directory -Filter "Name='c:\\temp\'"
Get-CimInstance: Invalid query

Getting AssociatedInstances
How does this help us get files? We can use the WMI AssociatorsOf concept. This is a way of searching for related, or associated items. The easiest way is to get a CIM object and then pipe it Get-CimAssociatedInstance. There may be multiple types of associated objects. I am filtering the results on the CIM_DataFile class.
$b = Get-CimInstance win32_directory -Filter "Name='c:\\temp'" | Get-CimAssociatedInstance -ResultClassName CIM_DataFile

This took about one second to run and returned 71 files. However, this is only for the root folder C:\temp. This is not including any sub-folders.
You might think that you can run commands like this and then pipe the output to Get-CimAssociatedInstance.
Get-CimInstance win32_directory -Filter "Drive='c:' AND Name LIKE 'c:\\temp\\%'"
Get-CimInstance win32_directory -Filter "Drive='c:' AND Caption LIKE 'c:\\temp\\%'"

But these commands will fail., Wildcards won't work in this context.
Getting All Folders
One option is to get associated directories.
$d = Get-CimInstance win32_directory -Filter "Name='c:\\temp'" | Get-CimAssociatedInstance -ResultClassName Win32_Directory

This will return the top-level folders.
PS C:\> $d.Name
c:\temp\briefcase
c:\temp\buttondown
c:\temp\dbox
c:\temp\foo
c:\

The first thing I need to do is filter out the root of C: since my goal is to eventually get all sub-folders under C:\Temp.
$d = Get-CimInstance win32_directory -Filter "Name='c:\\temp'" |
Get-CimAssociatedInstance -ResultClassName Win32_Directory |
Where-Object { $_.Name -match '^c:\\temp' }

This is closer.
PS C:\> $d.name
c:\temp\briefcase
c:\temp\buttondown
c:\temp\dbox
c:\temp\foo
PS C:\>

Do you see where I'm going with this? I eventually need to get all of these folders.
PS C:\> Show-Tree c:\temp
C:\temp
+--briefcase
|  +--docs
|  \--ISETabForm
|     +--.vs
|     |  \--ISETabForm
|     |     \--v16
|     |        \--Server
|     |           \--sqlite3
|     \--ISETabForm
|        +--bin
|        |  \--Debug
|        +--obj
|        |  \--Debug
|        |     \--TempPE
|        \--Properties
+--buttondown
|  \--posts
+--dbox
\--foo
   \--bar
      \--data
PS C:\>

The Show-Tree function is also in the PSScriptTools module.

Recursion Scripting
Since I know how to get parent folders, I can recurse each child folder to get its children. I find recursion easier with a defined PowerShell function.
Function Get-CimFolder {
    [cmdletbinding()]
    Param([string]$Path)

    $Name = $Path.replace('\', '\\')
    Get-CimInstance win32_directory -Filter "Name='$Name'" |
    Get-CimAssociatedInstance -ResultClassName Win32_Directory |
    Where-Object { $_.Name -match "^$Name" } |
    ForEach-Object {
        #write the parent folder object to the pipeline
        $_
        #recurse for each child
        Get-CimFolder -Path $_.Name
    }
}

The path must be a full filesystem path like C:\scripts.
Get-CimFolder c:\temp | Format-Table Name, Hidden, LastModified -AutoSize

figure 4
I can combine this technique with what I showed earlier.
$files = Get-CimFolder c:\temp | Foreach-Object {
    Write-Host "Getting files for $($_.Name)" -ForegroundColor Yellow
    $Name = $_.Name.replace('\', '\\')
    Get-CimInstance win32_directory -Filter "Name='$Name'" |
    Get-CimAssociatedInstance -ResultClassName CIM_DataFile
}

This finds 694 files, but doesn't include files in the root of C:\Temp.
$List = [System.Collections.Generic.List[object]]::new()
Get-CimInstance win32_directory -Filter "Name='c:\\temp'" |
Get-CimAssociatedInstance -ResultClassName CIM_DataFile |
Foreach-Object {$List.Add($_)}

Get-CimFolder c:\temp | Foreach-Object {
    Write-Host "Getting files for $($_.Name)" -ForegroundColor Yellow
    $Name = $_.Name.replace('\', '\\')
    Get-CimInstance win32_directory -Filter "Name='$Name'" |
    Get-CimAssociatedInstance -ResultClassName CIM_DataFile |
    Foreach-Object {$List.Add($_)}
}

Now I have all files under C:\Temp.
PS C:\> $list.count
765
PS C:\> $list.FindAll({$args.extension -eq 'jpg'}) | select Name,FileSize,LastModified

Name                                     FileSize LastModified
----                                     -------- ------------
c:\temp\Alien-1979.jpg                      17817 1/2/2024 1:45:15 PM
c:\temp\combined.jpg                       475090 3/8/2024 11:43:39 AM
c:\temp\Enter the Dragon-1973.jpg           39751 1/2/2024 2:17:54 PM
c:\temp\hagar-foo.jpg                      475090 3/8/2024 11:46:54 AM
c:\temp\hagar.jpg                          326714 3/8/2024 9:30:23 AM
c:\temp\Hi-And-Lois.jpg                    438718 3/8/2024 11:23:31 AM
c:\temp\hi-combined.jpg                    584720 3/8/2024 11:45:54 AM
c:\temp\slack-imgs.jpg                      82051 1/24/2024 11:24:28 AM
c:\temp\briefcase\Jeff-Hicks-Profile.jpg  4722768 3/25/2015 11:24:45 AM
c:\temp\briefcase\powershell-hero.jpg      196909 7/9/2018 9:08:20 AM

I am not showing it here, but the output also includes hidden files. If I had hidden folders, those too are used by default. I might want to take this into account.
Summary
I think I've given you enough to play with for today. Everything I've shown is proof-of-concept and intended to illustrate concepts and techniques. Ultimately, I want to build my own tooling using the native CIM classes for better performance. Although, there's nothing wrong with building functions that wrap Get-CimInstance and Get-CimAssociatedInstance. But I'm betting that at least a few of you want to roll up your sleeves and dive a little deeper. We'll look at what that entails next time.

            (c) 2022-2025 JDH Information Technology Solutions, Inc. - all rights reserved

Don't miss what's next. Subscribe to Behind the PowerShell Pipeline:

            Tzvika

                Jun. 17, 2024, morning

    What are the main advantages of using cim (CIM_DataFile & Win32_Directory) over the standard commands (Get-Item & Get-ChildItem)?

        Reply
Report

                Behind the PowerShell Pipeline

                Aug. 6, 2024, evening

    Get-Item and Get-ChildItem work locally, or through a PowerShell remoting session. I'm suing the CIM classes as an alternative to working remotely. I'm not saying it is the best way, just an alternative.
